Welcome to CCFP We are here to help you in selecting the ultimate parts for you boat.
Please stay tuned! this site is under construction, we are working on adding our Hi-End parts.
Enjoy the NEW fresh n' friendly layout, we hope to see you back soon.

Simply say hello to:
info@customcfparts.com

YES! We build boats! look us up on FaceBook by clicking icon above.



Rudder Systems

Machined from billet 7075 T6 aluminium, you can be sure this will hold up to any task.
Bead blasted, matte black anodized finish.


120 Rudder: MHZ114*, HPR 115/5009, and many other 40"-45" hulls

135 Rudder: Exocet 125, MHZ138*, HPR135, and many other 50"-55" hulls

155 Rudder: Exocet 150, HPR 150/5008, CT03, CT04, MHZ185*, and many other 60"-75" hulls

*All MHZ cat hulls require a rudder adapter.

"The Platinum Stamp" is the best we have to offer, it gives you assurance that you are dealing with high quality parts.


M120 - $165 USD | 149 EUR
M135 - $185 USD | 168 EUR
M155 - $199 USD | 182 EUR

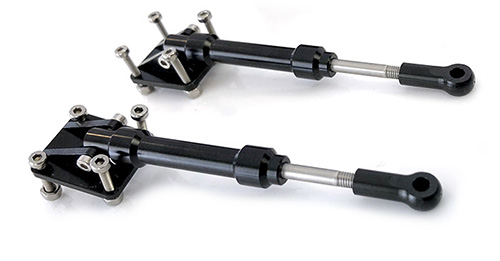

Hydraulic System

Machined from billet 7075 T6 aluminium, you can be sure this will hold up to any task.
Bead blasted, matte black anodized finish.

Carefully matched to integrate with our rudder series, but can be used with most rudders on the market.
Stainless hydraulic pin with 2mm bore and M3 threaded ends for tightening hardware.

MK I Hydraulic Arms - $65 USD | 58 EUR

Surface Drive Systems

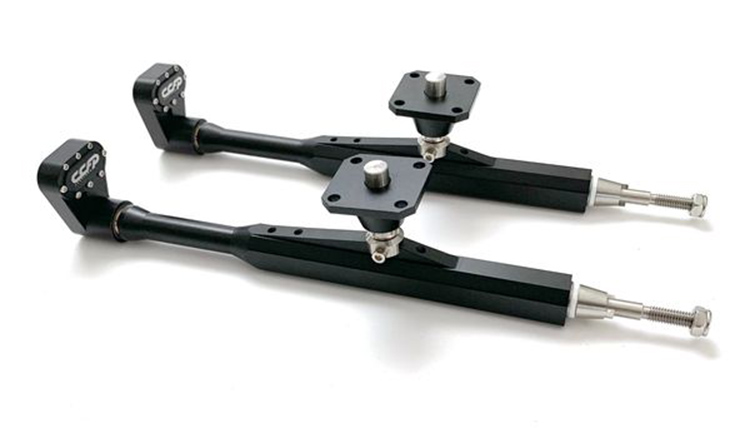

The brand new fully adjustable MK 5 Adjustable Drive is finally here: (above picture)
EXOCET 125 and 150, MHZ138, HPR135, HPR 150/5008, CT03, CT04, MHZ185, and many other 50"-90" hulls.

Machined from billet 7075 T6 aluminium, you can be sure this will hold up to any task.
Bead blasted, matte black anodized finish.

Bearing System: X2 Stainless NSK Ball in front, Bronze Graphite in rear of drive.
Flex to Drive/Prop-end Configuration: 3/16"-3/16" or 1/4"-3/16" or 1/4' -1/4"
Prop shaft: 8mm Marine Grade Stainless
Max Loaded RPM: 75000 (Submerged only)





Machined from billet 7075 T6 aluminium, you can be sure this will hold up to any task.
Bead blasted, matte black anodized finish.

MK III Fixed Drive: MHZ114, HPR 115/5009, and many other 40"-45" hulls.

MK IIII Adjustable Drive: MHZ138, HPR135, HPR 150/5008, CT03, CT04, MHZ185, and many other 50"-75" hulls.

Bearing System: X2 Stainless NSK Ball in front, Bronze Graphite in rear of drive.
Flex to Drive/Prop-end Configuration: 3/16"-3/16" or 1/4"-3/16" or 1/4' -1/4"
Prop shaft: 8mm Marine Grade Stainless
Max Loaded RPM: 75000 (Submerged only)

All drives can be configured with low profile pedestals.

"The Platinum Stamp" is the best we have to offer, it gives you assurance that you are dealing with high quality parts

MK III - $285 USD | 255 EUR
MK IIII - $385 USD | 350 EUR
MK 5 - $420 USD | 400 EUR

Sold in sets of 2 units

Low profile pedestal configuration is FREE of charge!

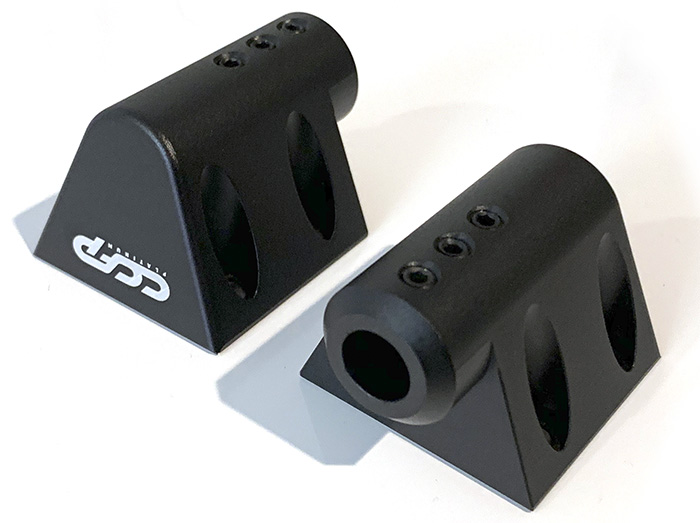

Rear Pedestal Blocks

Rear blocks designed for hulls with short overhang, or where an extreme long drive is desired. Pictured is a HPR135 with our longest drives at 213mm to end of drive dog plus a rudder and hydraulic system. This is the ultimate SAW setup.

Bead blasted, matte black anodized finish.

MK I Rear Pedestal Blocks - $95 USD | 87 EUR


Sold in sets of 2 units

Complete System





MK I Rear Pedestal Blocks - $95 USD
MK IIII Adjustable Drives - $385 USD
MK I Hydraulic Arms - $65 USD
M135 Rudder - $185 USD

Total $730 USD. Purchase the complete set and pay only $699 USD (Limited time only)

Servo to Rudder Pull/pull System

Machined from billet 7075 T6 aluminium, you can be sure this will hold up to any task.
Bead blasted, matte black anodized finish.

There is not much to say about this but POWERFUL, you want hold? well, this is what you need.

Fits any 25T servo and can be used for almost any hull size.
We have successfully used these in 2.4m boats (92")

"The Platinum Stamp" is the best we have to offer, it gives you assurance that you are dealing with high quality parts

MK I - $65 USD | 58 EUR




 Accepted

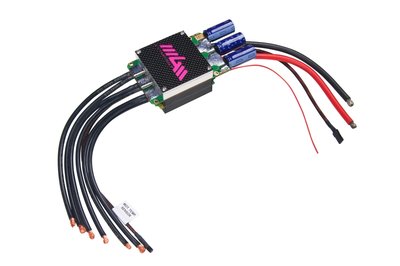

New X2 Series TMM 25063-3 and 25035 Controllers ready for your order
10% OFF any Carbon Fiber order when you purchase this new controller!!!

Only $675.00 while stock last. Free USB programmer with any dual order.



Lehner Motors (LMT)
5% OFF with any purchase of Carbon Parts! and 10% off with any MGM controller
